Concentric flue program pellet clasic - Inox sheet 0.6 mm
The products are intended for indoor and outdoor installation, for the purpose of removing smoke and combustion products from the furnace through the inner diameter of the pipe and the supply of fresh air to the furnace hearth through the outer diameter of the pipe. They are made of stainless steel and are decoratively painted (plasticized black).
Flue connection diameters: DN80 and DN100 mm.
Flue connection diameters: DN80 and DN100 mm.
Temperature class:
T450°C - for application at negative chimney pressure (natural vacuum N1) without elements for
sealing joints
T250°C - for positive pressure application (overpressure P1) with forced-ventilated smoke exhaust
(pellet stove) into the chimney. A green viton seal is used on the joints.
T200°C - for change at positive pressure (overpressure P1) with forced-ventilated smoke exhaust
(pellet stove) into the chimney. A black silicone seal is used on the joints.
Application:
1. option T450: for wood burning stoves with fresh air supply
2. option T200 and T250: for pellet furnaces, gas conventional and condensing furnaces, and oil furnaces, with fresh air supply for combustion in the furnace
2. option T200 and T250: for pellet furnaces, gas conventional and condensing furnaces, and oil furnaces, with fresh air supply for combustion in the furnace
Corrosion resistance:
V2- surface protected by glass enamel provides corrosion resistance
Resistance to soot combustion:
G-resistant to soot ignition for option T450
O- not resistant to soot ignition for options T200 and T250 because a seal is applied

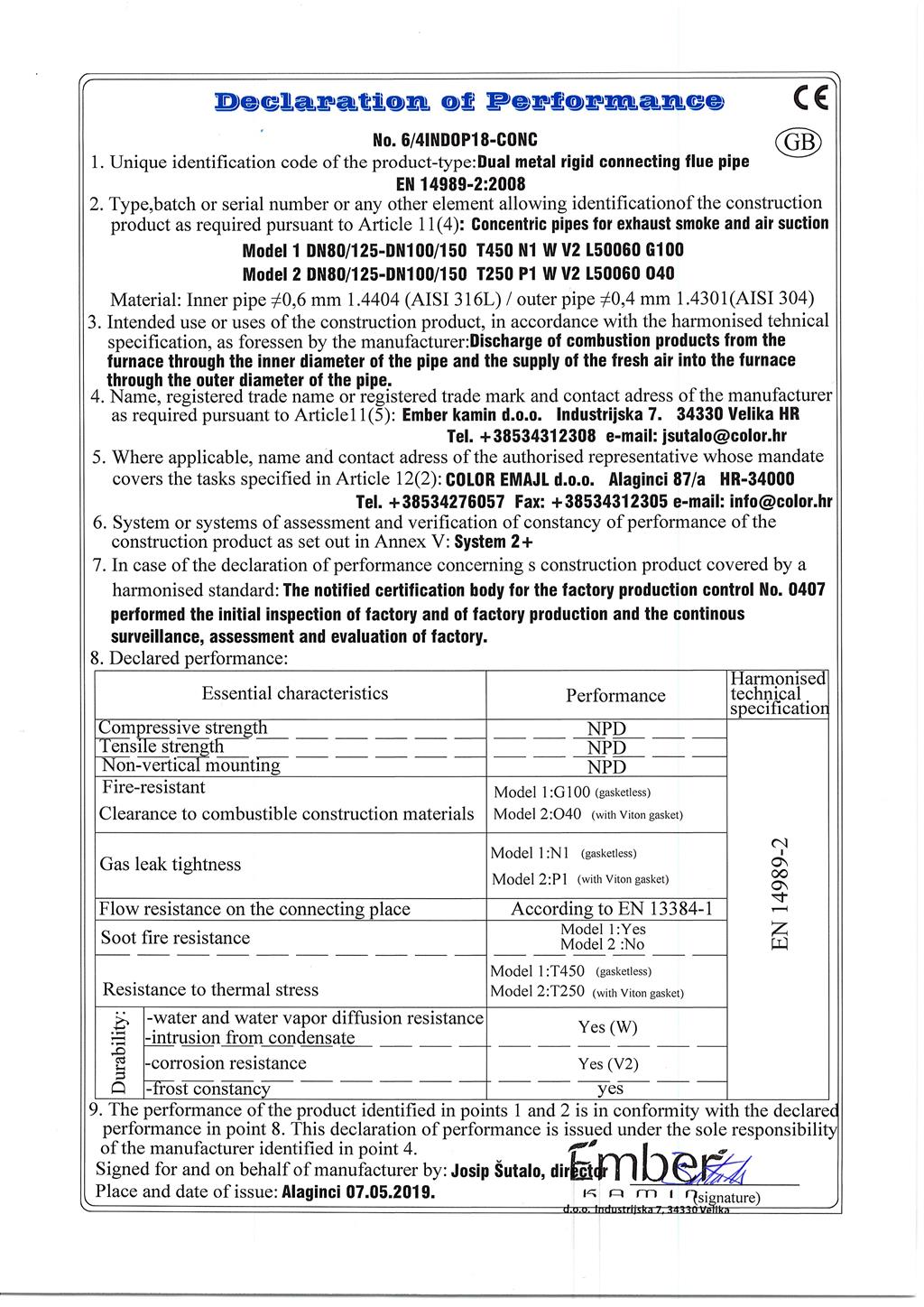

- Declaration of Performance
- Instalation instructions
- PDF catalogue
